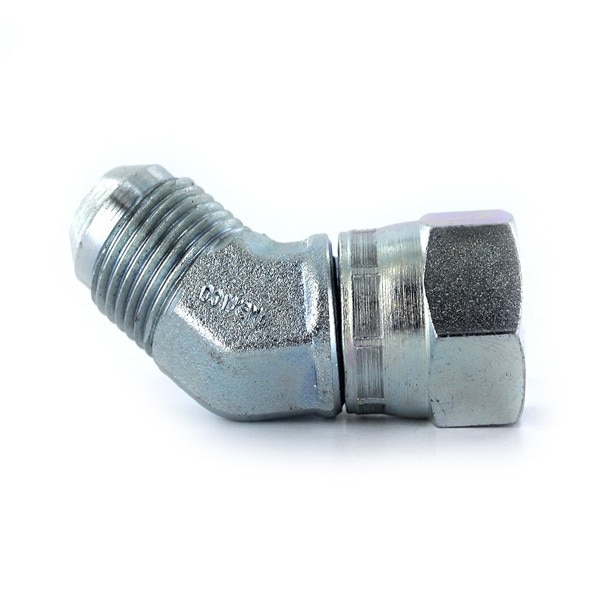

V6X4 Swivel Elbow 45 Degree Flare Fitting
V6X4 Swivel Elbow Flare, 1/4" Male JIC X 1/4" FNPT Female
1/4" Steel Male JIC Elbow Flare Fitting, High Pressure Flare Hose Fitting #4 MJIC X #4 Female Pipe Straight, 6000PSI.The Triple-Lok 37 degree line of fittings is one of the most popular fitting designs in the world, meeting the specifications and military standards of SAE J514 and ISO 8434-2. The standard Triple-Lok fitting consists of three parts: the body, the nut and the sleeve. The tube end is flared at a 37 degree mating angle and is then sandwiched and tightened between the fitting nose and the sleeve by torquing the nut onto the fitting body. This design produces an optimal blowout proof seal that exceeds the burst pressure of the system tubing.
