TCOM-13H BAUER Compressors MOBILE BREATHING AIR TRAILER

(0)No Reviews yet
CALL FOR PRICE OR REQUEST QUOTE
SKU: Tcom-13H

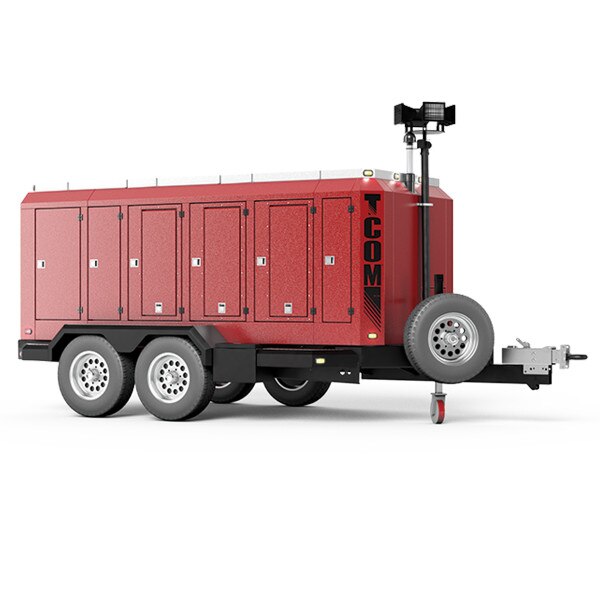

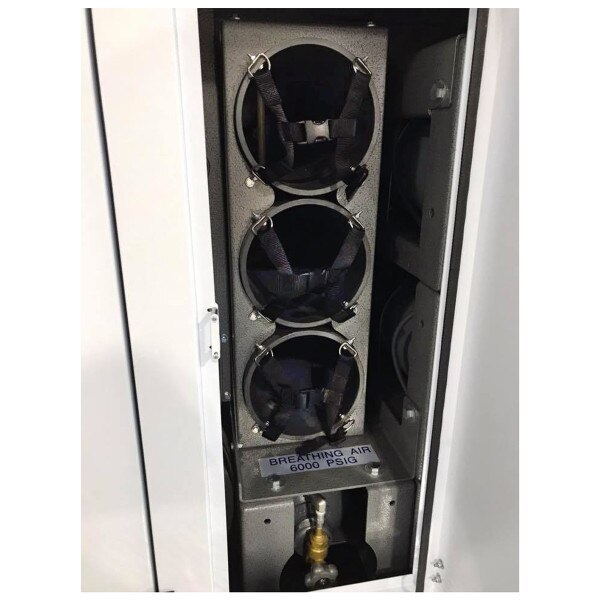

Bauer Compressors TCOM Trailer for when your needs require a rugged 6000PSI high pressure breathing air trailer built for the fire service, rather than a cheap lightweight imitation, look to BAUER Compressors. Bauer's TCOM TRAILER designs are powered by a unique diesel/electric dual drive system. Each system is equipped with a 2 position 5.5 containment fill station, an enclosed fill control panel, four ASME storage cylinders and integral SCBA storage for up to twelve SCBA cylinders all incorporated onto a heavy duty frame built by BAUER. Breathing Air Systems and Safe Air Systems are the Largest Distributors of Bauer Compressors.

STANDARD SCOPE OF SUPPLY:

  • BAUER breathing air purification systems with SECURUS.
  • BAUER PLC based controller with four line text display.
  • NEMA 4 rated electrical enclosure with UL® listed control panel.
  • Automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic "Full" indication and compressor shutdown.
  • Four (4) 6000 PSIG ASME code stamped air cylinders.

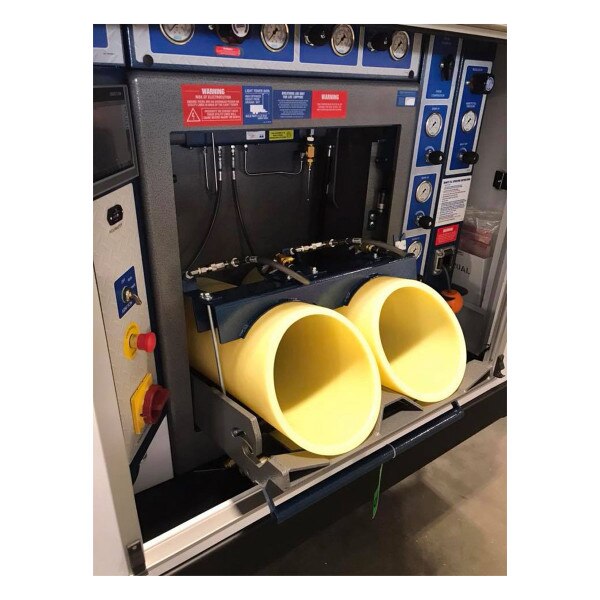

  • NFPA 1901 2016 edition compliant 2 position 5.5 containment fill station accommodates SCBA or SCUBA cylinders up to 31" overall length.
  • Unique diesel/electrical dual drive system incorporating our exclusive automatic belt tensioning system.
  • High gloss powder coat paint for a hard durable finish.
  • Hydraulic surge brakes with breakaway actuator.

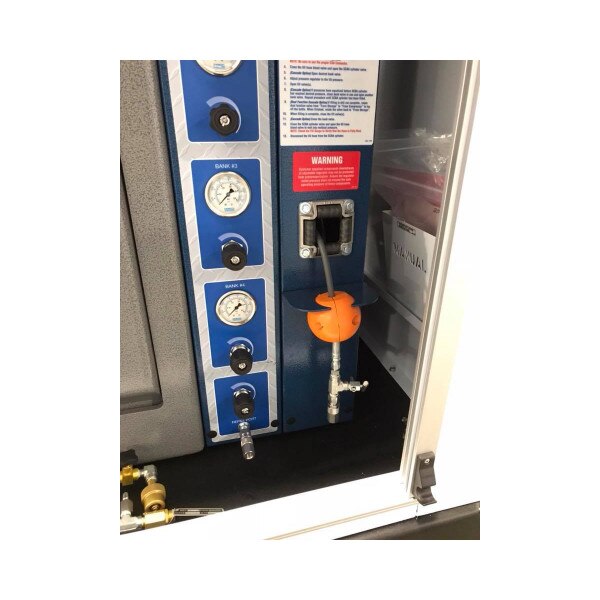

  • Four (4) bank dual function cascade controls with air direction valve.
  • Formed structural steel frame designed and built by BAUER.
  • Rolled shutter door protection for the operations panel and fill station.
  • Refill port.
  • CO monitoring system with calibration kit.
  • Lunette eye hitch.

SYSTEM FOOTPRINT:
Dimensions L x W x H inches (mm)
200" x 90" x 105"* (5080mm x 2286mm x 2267mm)
Weight pounds (kg)
8400 lb (3810 kg)
*with optional light mast


AVAILABLE ACCESSORIES (Factory Installed)

  • Option Package A - Telescoping light mast with four (4) 500 watt fixtures, snorkel tube for compressor air inlet integrated with light mast and 7500 watt auxiliary generator.
  • Option Package B - Spare tire and wheel chocks with fender well storage.
  • Option Package C - 100 ft hose reel and interior lights.
  • Option Package D - 2 5/16" ball hitch
  • Option Package E - 100 1/2" L x 5 1/2" H sign boards.
TCOM TRAILERS®
Technical Data
ModelCharging Rate1Number of StagesMotorFAD2RPMPurification System
 SCFML/MIn HPKW
6000 PSIG (414 Bar)
TCOM-13H13368410-277.5-2010.81420P5 SECURUS
TCOM-25H25.2714520-3715-27211300P5 SECURUS

1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.

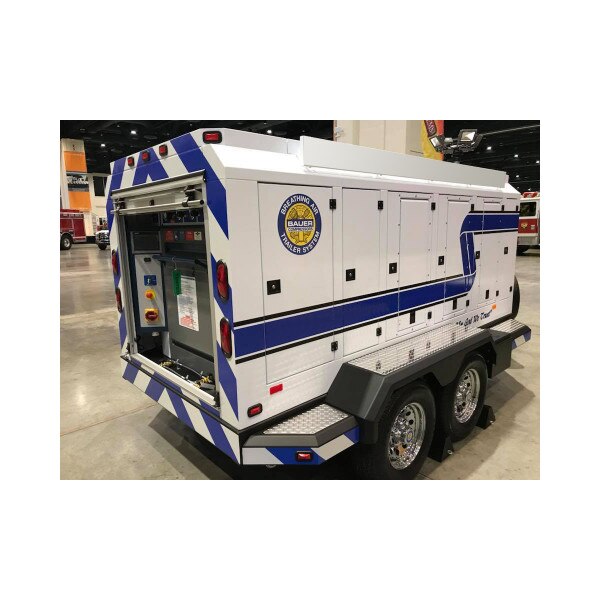

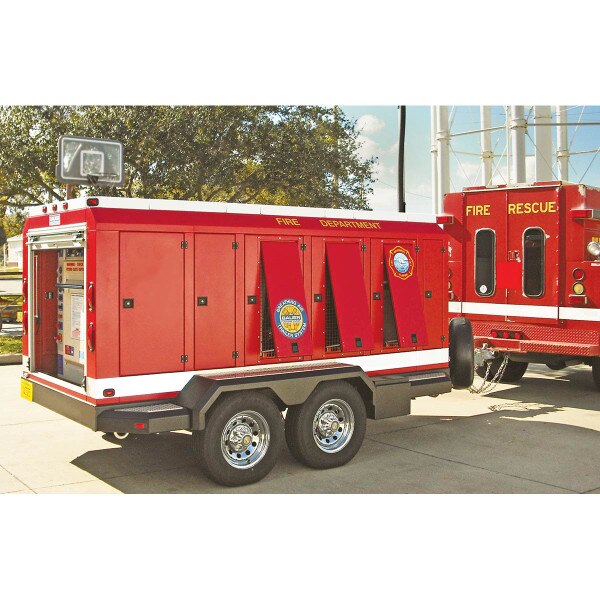

Image shown with additional accessories.
Dimensions and weights are approximate and are subject to chance.
