TCL-13H TCOM Lite BAUER Compressors MOBILE BREATHING AIR TRAILER
STANDARD SCOPE OF SUPPLY:
- BAUER breathing air purification systems with SECURUS.
- BAUER PLC based controller with four line text display.
- NEMA 4 rated electrical enclosure.
- Automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic "Full" indication and compressor shutdown.
- Two (2) 6000 PSIG ASME code stamped air cylinders.

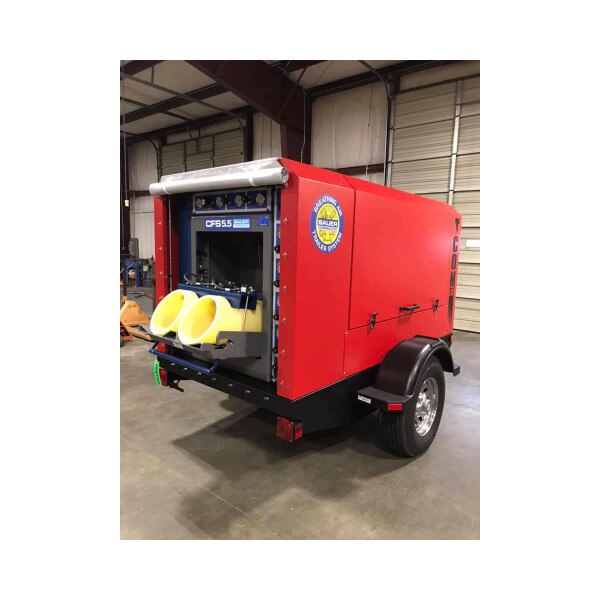

- NFPA 1901 2016 edition compliant 2 position 5.5 containment fill station accommodates SCBA or SCUBA cylinders up to 31" overall length.

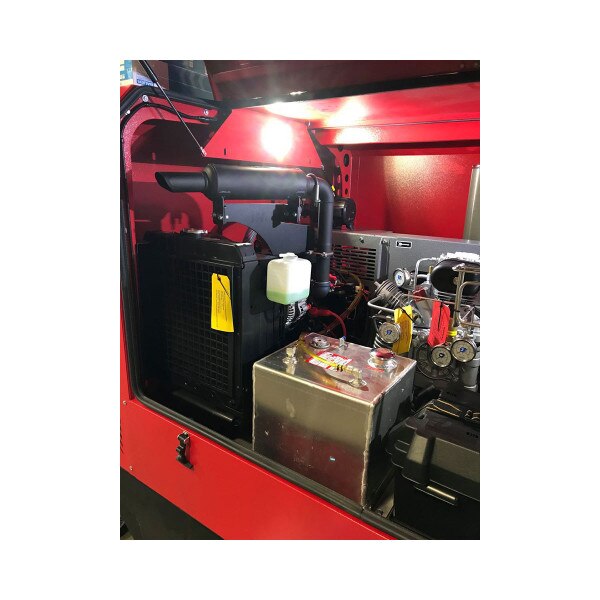

- Unique diesel/electrical dual drive system incorporating our exclusive automatic belt tensioning system.
- High gloss powder coat paint for a hard durable finish.
- Hydraulic surge brakes with breakaway actuator.
- Four (4) bank dual function cascade controls with air direction valve.
- Formed structural steel frame designed and built by BAUER.

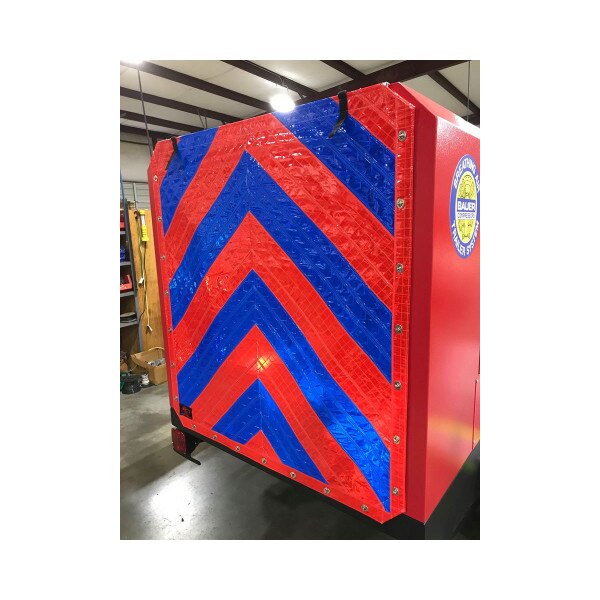

- Hypalon® type cover protection for the operations panel and fill station.(Custom Chevron Reflective Cover available at additional cost).
- Refill port.
- CO monitoring system with calibration kit.
- 2" ball hitch.
Dimensions L x W x H inches (mm)
144" x 77" x 72" (3658mm x 1956mm x 1830mm)
Weight pounds (kg)
5400 lb (2450 kg)
AVAILABLE ACCESSORIES (Factory Installed)
- Option Package A - Spare tire with cover
- Option Package B - 75 ft hose reel and interior lights.
- Option Package C - Lunette eye hitch.
- Option Package D - Two (2) additional 6000 PSIG UN code stamped air cylinders.
|Model||Charging Rate1||Number of Stages||Motor||FAD2||RPM||Purification System|
|6000 PSIG (414 Bar)|
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.

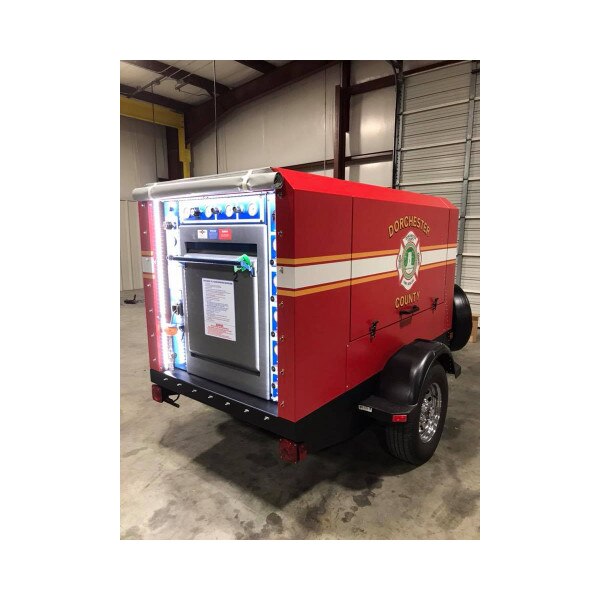

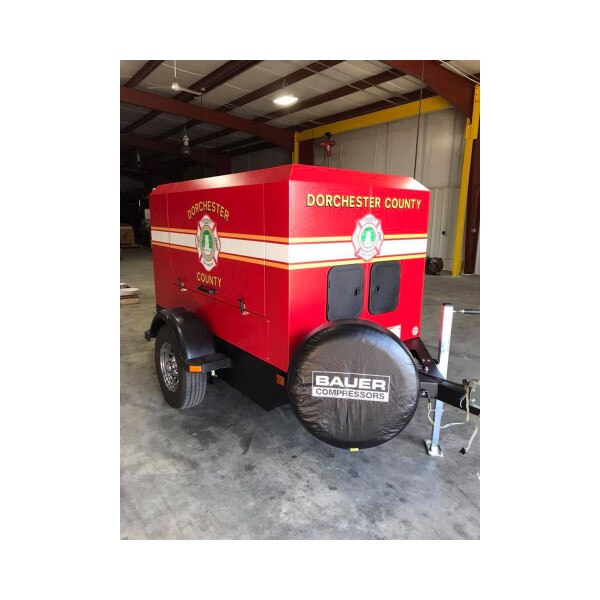

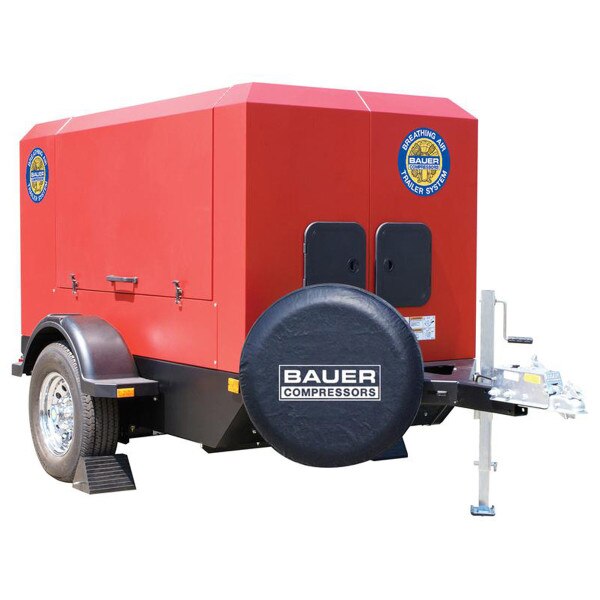

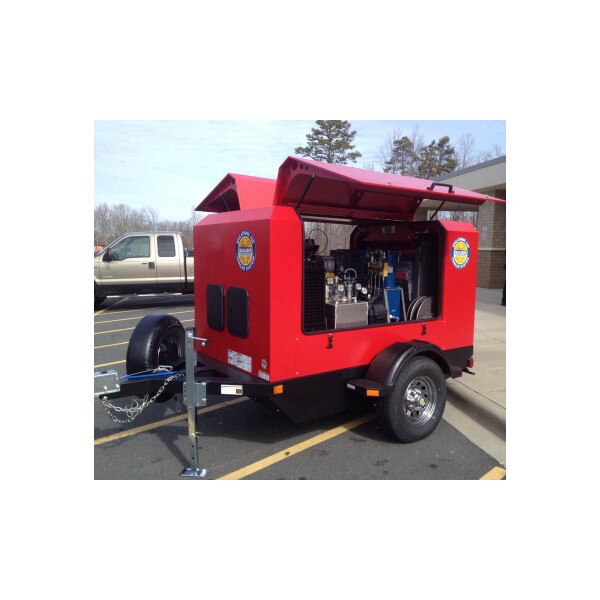

Image shown with additional accessories.
Dimensions and weights are approximate and are subject to chance.
