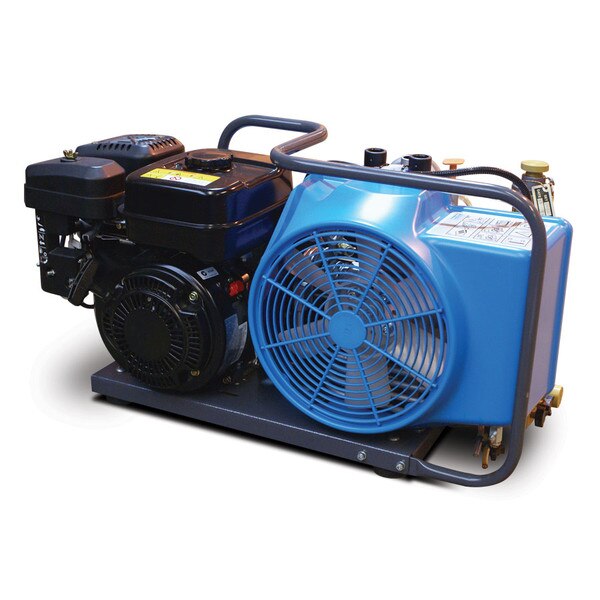

JRII-E3Y Bauer Portable Dive Compressor
3-STAGE HIGH PRESSURE BREATHING AIR 5000PSI COMPRESSORS
JUNIOR II and OCEANUS — include an air purification system and fill hose. These safe and reliable 3-stage compressors are designed for serious sport divers. Available in 1-phase 115/230 VAC and 3-phase 230/460 VAC electric motor, gasoline or diesel engine drives.STANDARD SCOPE OF SUPPLY
- BAUER P0 breathing air purification system
- Belt guard designed to meet OSHA guidelines
- Inlet filter
- Vibration isolators
- High temperature switch (G drives)
- Five foot fill hose assembly with SCUBA yoke, bleed valve and pressure gauge
OCEANUS MODELS (ADD TO ABOVE)
- Sturdy, long lasting low pressure oil pump
- Large oil sump allows shipboard inclination of 30°(20° G drive)
- Capable of filling/maintaining up to a two cylinder 5000 PSIG UN storage system
- Corrosion-resistant coolers and stainless steel frame
YACHTING PACKAGE (ADD TO ABOVE)
- NEMA - 4 electrical box
- Motor starter
- Automatic condensate drain with muffler/separator and condensate reservoir
- Pressure switch
- Stainless steel fittings
AVAILABLE ACCESSORIES
(FACTORY INSTALLED)
- Visual CO/Moisture monitor indicator
- Final pressure switch for gasoline engine
- Hourmeter/Tachometer (G drive)
SYSTEM FOOTPRINT

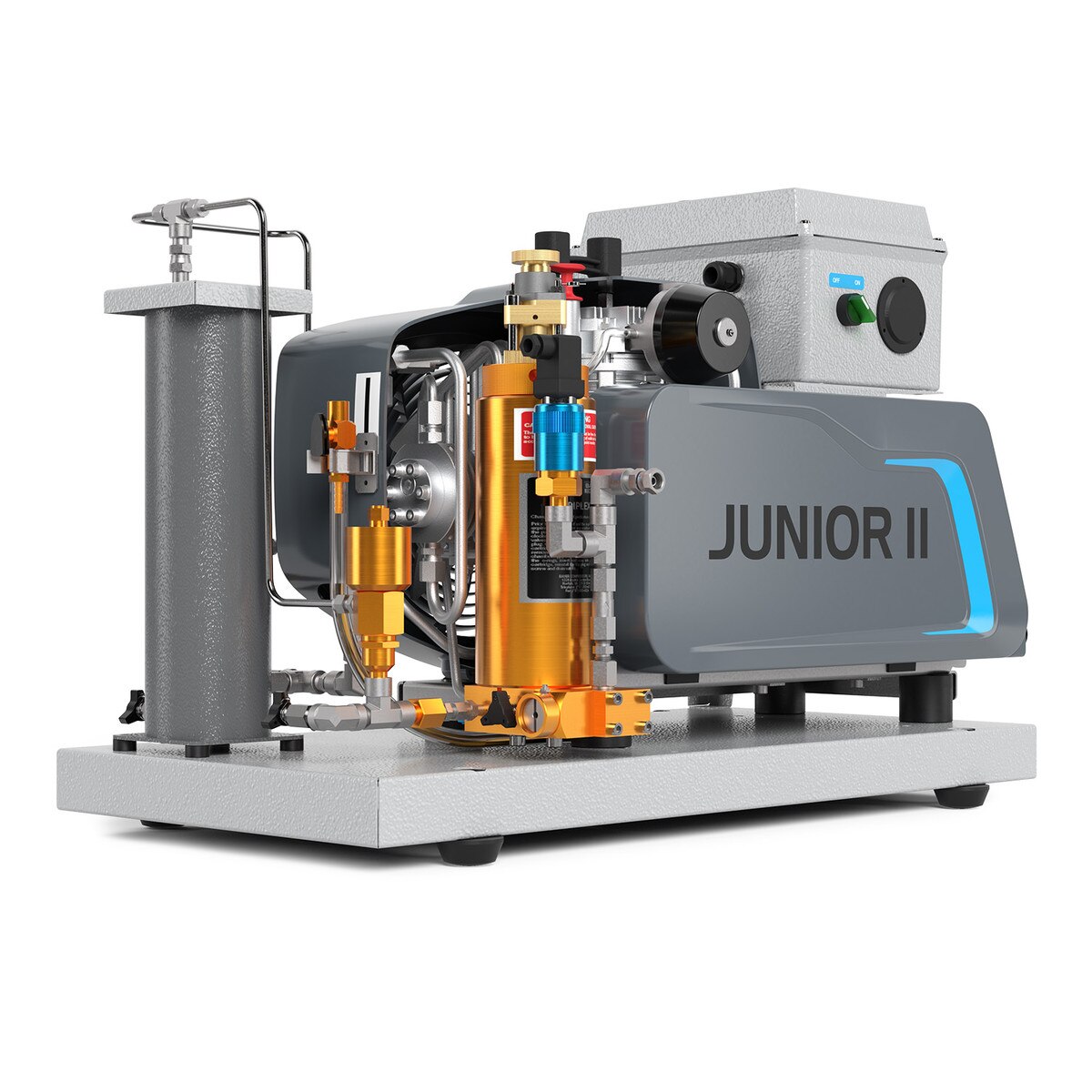

JUNIOR II:
DIMENSIONS L x W x H inches (mm)
- 42” x 19” x 23” (1067mm x 483mm x 584mm)
- 89 - 165 lb (40 - 75 kg)
OCEANUS:
DIMENSIONS L x W x H inches (mm)
- 32” x 18” x 23” (813mm x 457mm x 584mm)
WEIGHT pounds (kg)
- 96 - 135 lb (44 - 61 kg)
