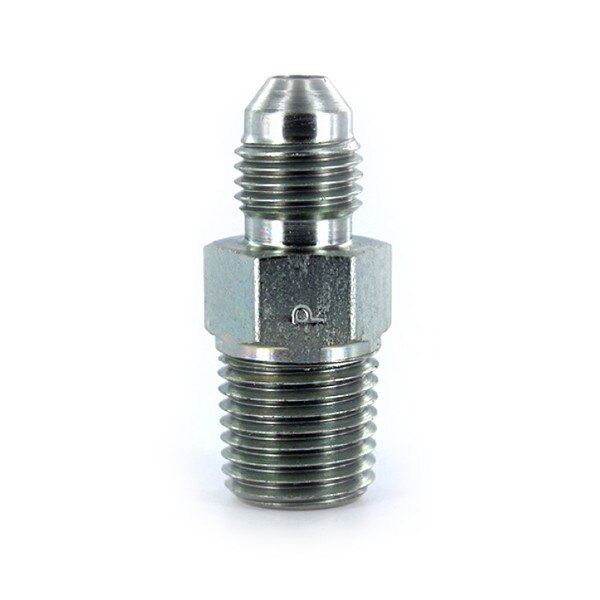

FTX42 Male Straight Flare Fitting
FTX42 Male Flare, 1/4" Male JIC X 1/8" MNPT Male
1/4" Steel Male JIC Straight Fitting, High Pressure Flare Hose Fitting 1/4" MJIC X 1/8" Male Pipe Straight, 6000PSI.The Triple-Lok 37 degree line of fittings is one of the most popular fitting designs in the world, meeting the specifications and military standards of SAE J514 and ISO 8434-2. The standard Triple-Lok fitting consists of three parts: the body, the nut and the sleeve. The tube end is flared at a 37 degree mating angle and is then sandwiched and tightened between the fitting nose and the sleeve by torquing the nut onto the fitting body. This design produces an optimal blowout proof seal that exceeds the burst pressure of the system tubing.
Specifications
- Item: Female Straight Connector
- Brand: Parker Hannifin
- Model: 4-2 FTX-S
- Size: 1/4 MJIC X 1/8 MNPT Male
- Type: Triple-Lok
- Material: Steel
- Max Pressure: 6000 PSI
