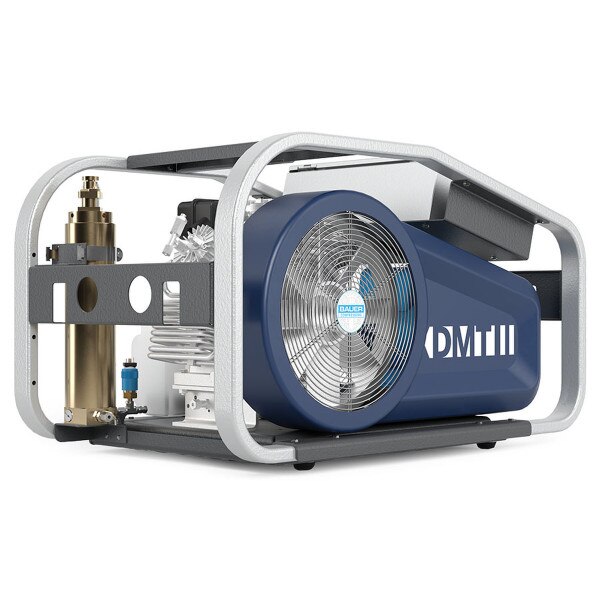

DMT II 13-E1 Bauer Portable Dive Compressor
We reinvented our BAUER DMT II product family for 2022. Introducing the new DMT II package. A combination of a high-strength aluminum alloy tubular frame and a formed motor baseplate create a durable foundation for this lightweight, yet robust, package. We have increased the number of compressor offerings and motor drives to allow you to tailor the package to your specific requirements. We challenge you to find a more flexible package or a greater variety of amenities: from 8.4 to 13.0 scfm charge rate, three (3) or four (4) stage BAUER compressor, and BAUER purification. Electric motor engine drives allow you to select the mode of power best suited to your specific requirements. Furthermore, we even offer two (2) trim levels to allow you to select the appropriate package, to meet the buyer’s needs.
STANDARD SCOPE OF SUPPLY
Available in three sizes 8,10 &13 SCFM charge rate
* Base Model
Available in three sizes 8,10 &13 SCFM charge rate
- Choice of prime mover/drive
- Electric motor, 1-phase or 3-phase
- Inlet filter
- Stainless steel intercoolers and aftercooler
- High-temperature switch (except D drive)
- Vibration isolators
- P31 Purification for 5000 PSIG systems
- P41 Purification for 6000 PSIG systems
- Low oil pressure switch (electric drive)
- Motor starter with NEMA 4 enclosure (electric drive units)
- Hourmeter
- Final pressure switch
- Visual CO/moisture indicator
- Lifting handles
- Tubular aluminum frame
DMT II ELITE (ADD TO ABOVE)
- Interstage gauges
- Automatic condensate drain
AVAILABLE ACCESSORIES
(FACTORY INSTALLED)
- B-Timer (P31)
AVAILABLE ACCESSORIES
(DEALER/CUSTOMER INSTALLED)
- Wheel kit
SYSTEM FOOTPRINT
DIMENSIONS L X W X H inches (mm)
- 48” x 32” x 28” (1219mm x 819mm x 711mm)*
WEIGHT pounds (kg)
- 300 - 450 lb (136 - 204 kg)
* Base Model
