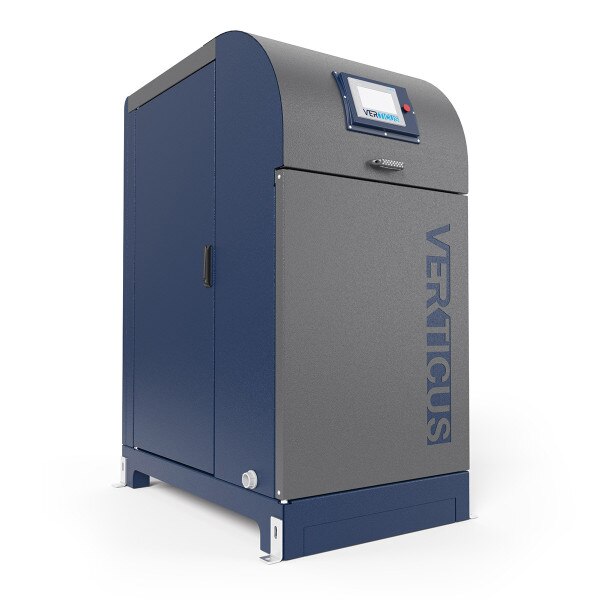

BAUER VERTICUS | VAC26-E3 | Three Phase | 5000PSI

(0) No Reviews yet
CALL FOR PRICE OR REQUEST QUOTE
SKU: VAC26-E3

3, 4 AND 5-STAGE ENCLOSED HIGH PRESSURE BREATHING AIR COMPRESSORS

The days of “Breadbox” designed compressor packages are over! Step up to the BAUER VERTICUS. The updated sound attenuated cabinet is equipped with a unique aesthetically pleasing horizontally hinged, and gas shock supported, operations panel, assuring direct and easy access to the drive belts. Vertically hinged and lift-off side maintenance access doors incorporating fast pin technology make removal of the doors a snap – no hand tools are required! The rear panel incorporates integral handles and tabbed lift off design. The front vertically hinged access door is affixed with a hex keyed latch to eliminate the accidental opening of the door while the system is operating. Sound attenuation has been incorporated on every possible panel to provide a nice and quiet operating level of approximately 72 dB (within one-meter). One package size accommodates BAUER high pressure aircooled compressors from 5 to 20 Hp motors. Our new, larger, 7” HMI enhances monitoring of system functions.

BAUER VERTICUS; VAC26-E3; 5000PSI; Three Phase; 26.4 SCFM; 20HP; 15KW

STANDARD SCOPE OF SUPPLY:

  • BAUER breathing air purification system with SECURUS
  • BAUER PLC based controller with 7” color HMI touchscreen display
  • NEMA 4 rated electrical enclosure with UL® listed control panel
  • Compressor low oil pressure and high temperature safety shutdowns
  • Emergency stop push button and automatic start/stop control
  • Zero loss automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic "Full” indication and compressor shutdown
  • Interstage pressure gauges (locally mounted)
  • Vertically hinged front operations panel and lift-off side maintenance access doors
  • Inlet filter maintenance indicator
  • Unique hinged front operations panel

SYSTEM FOOTPRINT:
VERTICUS:
VAC5 - VAC26
DIMENSIONS L X W X H inches (mm)
  • 55” x 35” x 70” (1397mm x 737mm x 1778mm)
WEIGHT pounds (kg)
  • 1000 - 1400 lb (453.6 - 635 kg)
VERTICUS
Technical Data
ModelCharging Rate1Number of StagesMotorFAD2RPMPurification System
 SCFML/MIn HPKW
5000 PSIG (345 Bar)
VAC8-E1/E38.423837.55.671250P5 SECURUS
VAC20-E3215954151117.51300P5 SECURUS
VAC23-E326.474842015221350P5 SECURUS
VAC42-E3³42119043022351300P5 SECURUS
6000 PSIG (414 Bar)
VAC4-E1/E35142353.741050P2 SECURUS
VAC10-E1/E39.727547.55.68.11180P2 SECURUS
VAC13-E1/E3133684107.510.81420P2 SECURUS
VAC18-E31851041511151325P5 SECURUS
VAC25-E325.271452015211300P5 SECURUS
VAC35-E3³35.910174302229.81200P10 SECURUS

1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
E1= Single phase electric, 230 VAC/60Hz.E3= Three Phase Electric, 208/230/460 VAC/60Hz. Other voltages available on request. Dimensions and weights are approximate and are subject to chance.
