BAUER LEGACY 13 | Single Phase | 6000PSI

(0) No Reviews yet
CALL FOR PRICE OR REQUEST QUOTE
SKU: LEGACY-13-E1
Bauer Legacy Open Vertical Compressor/Purifier configured for 13.0 scfm, 6000 psig, 4-stage compressor, 10 hp, single phase motor and 67,000 scf capacity purifier, integrated purification system that meets NFPA 1989 requirements for firefighting and CGA Grade E air for SCUBA, purifier includes steel mechanical separator chamber, as well as purifier safety vent port to prevent operating system w/o cartridge. Standard with Bauer long-life, well-cooled, oil-pressure lubricated compressor block with stainless steel intercoolers, high-temperature & low oil pressure shutdowns.  Mounted pressure gauges for oil, final stage and purifier.  Includes PLC with touch pad controller with full color display, lighted on/off switch, hour meter, emergency stop button, safety over-time timer, motor controls/protection and UL-rated electrics.
BAUER LEGACY 13CFM 6KPSI 10HP; Single Phase.

AUTO CONDENSATE DRAIN SYSTEM
-Timed automatic drain, includes silencer and collection reservoir and user display indicator if "full".
MTD INTERSTAGE PRESSURE GAUGES
SECURUS PURIFIER MONITOR SYSTEM
- Built-in, continuous monitor for purification cartridges.
- Includes user display indicators for "safe", "high moisture", "cartridges expired" and "contact fault".
- Automatic system shutdown for faults; fail-safe (can not be over-ridden); no warm up required.
- Can extend the purifier cartridge's useable life.

LEGACY PROGRAM
Technical Data
ModelCharging Rate1Number of StagesMotorFAD2RPMPurification System
 SCFML/MIn HPKW
Legacy Compressor 6000 PSIG (414 Bar)
LEGACY-8-E1 (230 volt)822737.55.67.51450P2 B-SECURUS
LEGACY-8-E3 (230 volt)822737.55.67.51450P2 B-SECURUS
LEGACY-13-E1 (230 volt)132384107.5111420P2 B-SECURUS
LEGACY-13-E3 (208 volt)132384107.5111420P2 B-SECURUS
LEGACY-18-E3 (208 volt)1851041511151325P2 B-SECURUS

1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.

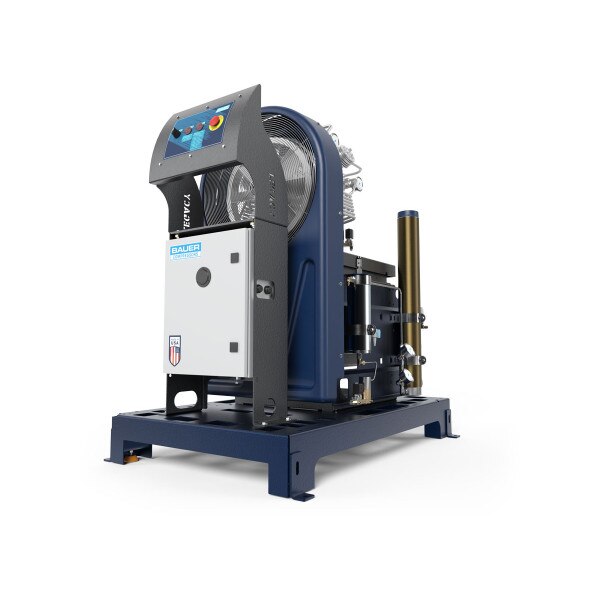

Image shown with additional accessories. Dimensions and weight are approximate and are subject to change.
