H25-D BAUER Engine Driven | H25-D | Diesel Driven | 6000PSI

(0)No Reviews yet
CALL FOR PRICE OR REQUEST QUOTE
SKU: H25-D

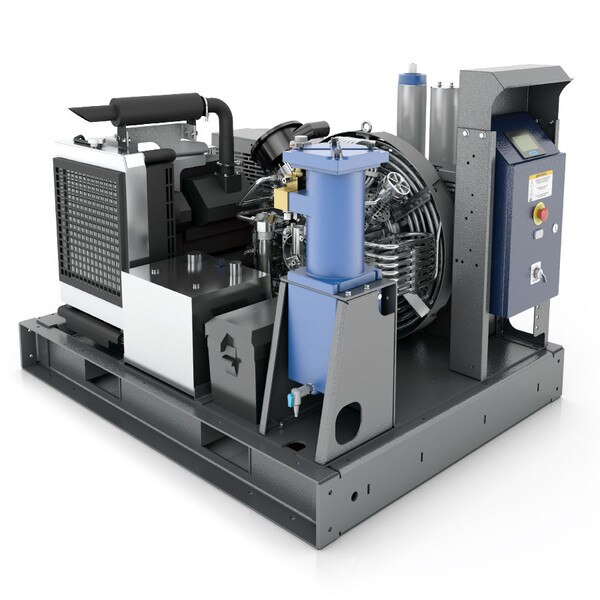

4 and 5-Stage High Pressure Breathing Air Compressors. Bauer Diesel Engine Driven packages in Horizontal Compressor configurations for recharging SCBA or SCUBA cylinders combines compressor, purification system and engine drive. The frame's rugged design is specific to the requirements of the engine drive / compressor block assembly.

BAUER Engine Drive Compressor; H25-D; 6000PSI; Diesel Engine Driven; 25.2 SCFM; 27HP; 20KW

STANDARD SCOPE OF SUPPLY:

  • BAUER Breathing Air Purification System with SECURUS
  • BAUER PLC based controller with 4 line text display
  • NEMA 4 rated electrical enclosure with hourmeter
  • Compressor low oil pressure and high temperature safety shutdowns
  • Emergency stop push button
  • Automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic "Full" indication and compressor shutdown
  • Interstage pressure gauges
  • Electric start package including electric clutch and speed control solenoid
  • Closed loop water-cooled diesel

Available Accessories:
  • CO Monitoring System


SYSTEM FOOTPRINT:

H13-K26:
DIMENSIONS L X W X H inches (mm)
  • 63 x 49 x 46 (1600 x 1245 x 1168)
WEIGHT pounds (kg)
  • 1300-3750 (590-1700)
H35-K42:
DIMENSIONS L X W X H inches (mm)
  • 95 x 52 x 49 (2413 x 1320 x 1245)
WEIGHT pounds (kg)
  • 1300-3750 (590-1700)
K60:
DIMENSIONS L X W X H inches (mm)
  • 112 x 52 x 53 (2845 x 1320 x 1346)
WEIGHT pounds (kg)
  • 1300-3750 (590-1700)
