32-0001 Solenoid Valve - ASCO

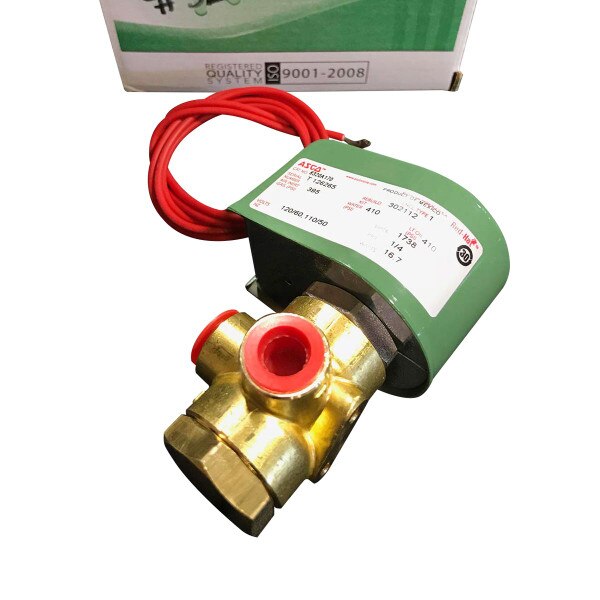

ASCO Solenoid Valve - High Pressure Part - 8320A170 120/60AC (32-0001)
Replacement ASCO Solenoid Valve #8320A170, 120/60; 110/50; T126265. The ASCO 8320 series valves are small 3-way solenoid valves with all three connections located in the body. Valve bodies are made of brass or stainless steel. All replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.
Product Specifications:
| AC/DC: | AC |
| Inlet Pipe Size (NPT): | 1/4 in |
| Orifice Size: | 1/32 in |
| Lead Length: | 18.00 in - 45.72 cm |
| Coil Class: | F |
| Body Material: | Brass |
| Cv/Kv (Pressure Port): | 0.02 Cv - 0.02 Kv |
| Max Ambient Temperature: | 77 F - 25 C |
| Max Fluid Temperature: | 140 F - 60 C |
| Min Ambient Temperature: | 32 F - 0 C |
| Min Fluid Temperature: | 32 F - 0 C |
| Watt Rating 60 Hz: | 16.70 W |
| Max Operating Pressure (Air): | 395 PSI - 27.2 Bar |
| Max Operating Pressure (Water): | 410 PSI - 28.3 Bar |
| Max Operating Pressure (Lt Oil): | 410 PSI - 28.3 Bar |
