32-0012 Solenoid Valve 24VAC - ASCO

(0) No Reviews yet
$311.66
SKU: 32-0012

Details

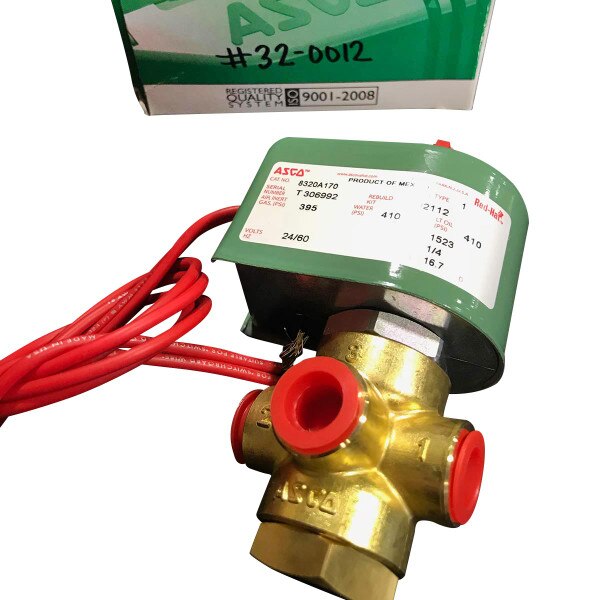

32-0012 ASCO SOLENOID VALVE - HIGH PRESSURE COMPRESSOR PARTS

Part# 32-0012 ASCO Solenoid Valve. Item# 8320A170. 24/60; 24VAC; T306992. High-flow valve for liquid, corrosive, and air/inert gas service in applications such as AIR COMPRESSORS, car washes, pumps, laundry equipment, and industrial water control. 1-pc. molded epoxy coil enclosure has a built-in 1⁄2" NPT conduit hub with strain relief. Normally closed valve is open when energized. All replacement products are manufactured to meet or exceed the specifications of the original equipment manufacturer.

Technical Specs

  • Item:ASCO Solenoid Valve
  • Valve Ways and Positions2-Way/2-Position
  • Valve ConfigurationNormally Closed
  • Media - ValvesWater
  • Pipe Size - Valves1/4"
  • Min. Operating Pressure Differential0 psi
  • Max. Operating Pressure Differential Air/Inert Gas90 psi
  • Max. Operating Pressure Differential Light Oil100 psi
  • Max. Operating Pressure Differential Water100 psi
  • Voltage24VAC
  • Coefficient of Volume0.72
  • Body Material - ValvesBrass
  • Coil Insulation ClassF
  • Seal Material - ValvesNBR
  • Orifice Dia.7/32"
  • NEMA Rating1, 2, 3, 3S, 4, 4X
  • IP Rating66
  • Max. Fluid Temp.180 Degrees F
  • Hz50
  • Watts10.1
  • Coil EnclosureOpen Frame, Watertight No Junction Box
  • Electrical ConnectionsScrew Terminal
  • Overall Length1-9/16"
  • Overall Width1-15/16"
  • Overall Height3-1/4"
  • Center Line Pipe Center Size2-13/16"
